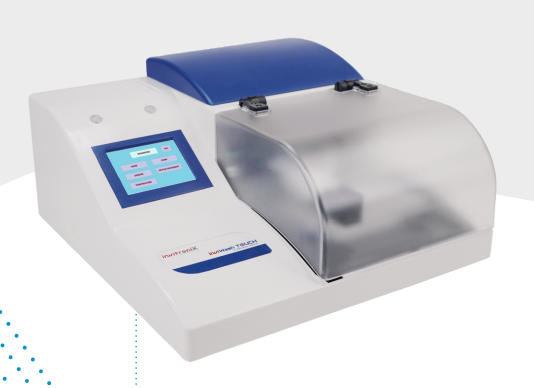

Elisa Plate Washer
Elisa Plate Washer
Features
- Programmable ELISA washer for 96 well ELISA Plate Strips.
- Specially designed 8/12 channel Manifold assembly to prevent any scratching on bottom of well
- Auto rinse Facility while shut down.
- User Friendly touch screen display.
- User programmable soak time, wash cycles and dispensing volume.
Features
- Cross Wash Facility For Flat Wells.
- Built-in stabilizer built-in vacuum & dispensing pump
- On Board two plate incubator at 37°C with programmable timer.
- Bottles with level sensor.
- Accommodates various types of microplates such as flat, U, V bottom.
- Provision to connect two wash bottles
- Removable & autoclavable manifold &
separate nozzles for aspiration & dispensing. - Removable plate carrier to perform decontamination.
TECHNICAL SPECIFICATIONS
Human Machine Interface
- Touch Panel Display
Dispensing
- Programmable From 50 μl – 1000 μl with precision of 3-5 %
Washing Cycle
- up to 99
Residual Volume
- < 2 μl
Wash Bottle & Rinse Bottle
- Capacity 2 litres, non pressurized
Liquid contact materials
- Silicon, Stainless Steel, Derline
Incubator
- For Two ELISA Plates, 37°C
Power
- 50 Watts / 115 – 240 Volts ±10%, 50/60 Hz.
Timer
- Individually Programmable 2 Nos.
Manifold
- 8/12 Way Manifold optional autoclavable & interchangeable
Method
- Continuous while dispensing hence preventing overflow
Soak Time
- up to 999 sec.
Waste Bottle
- Capacity 2 litres pressurized
Display
- High Resolution Touch Panel
Memory
- 65 open tests/programmes
Washing Method
- Plate Wash, Strip Wash, Top Wash, Bottom Wash, Overflow Wash, Rinsing, Priming, Disinfect
Weight
- 6.5 Kgs
