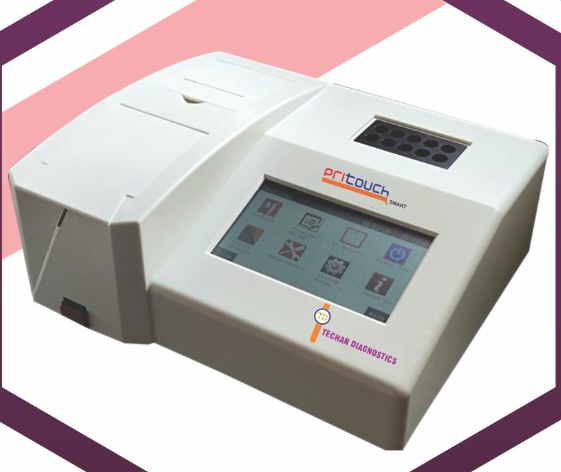

Pritouch Smart
Pritouch Smart
Features
- High performance Chemistry analyzer compatible with all biochemistry reagents
- Low Maintenance
- 7 Analysis Methods
- Automatic 7 filters +1 free positions
Superior quality flowcell with quartz window - Extremely precise temperature control for better results (25°, 30°,37°C) Peltier
SPECIFICATIONS
LIGHT SOURCE
- Long Life Halogen Lamp
WAVELENGTH RANGE
- Automatic By 8 Positions Filter-wheel
- 7 standard filters: 340, 405, 505, 546, 578, 630, 670nm
- 1 Positions free for optional filter
- Half bandwidth< 8nm Stray Light: < 0.3% at 340 nm
PHOTOMETRIC RANGE
- 0.0000 to 3.0000 ABS
- Resolution: 0.0001 ABS
- Stability: 0.002 A/hour
FLOWCELL
- Stainless Steel with quartz window measuring
volume 32ul, Optical path 10mm - Aspiration volume programmable : 300-1000ul Carryover < 1.0%
ANALYSIS METHOD
End point with or without reagent blank, End point with sample blank or without sample blank, Kinetic with or without Linearity check, Two-point kinetic/fixed time with or without reagent blank, Absorbance, Turbidimetry, Linear and non-Linear calibration Coagulation
MEMORY
- 120 Open Programmes
- 30 QC Results & 25000 Tests Results
TEMPERATURE CONTROL
- By means of peltier elements 25°C, 30°C, 37°C±0.1°C
DRY BLOCK INCUBATOR
- 10 Positions at 37°c
DISPLAY
- 7″ Colour Touch Display
- Built-in thermal Printer
INTERFACE
- RS-232 Serial Port
OPERATING ENVIRONMENT
- Temperature: 10°C- 30°C, Humidity: < 70%
VOLTAGE
- AC 115-230V+ 10%, 50-60Hz
POWER
- 100VA
WEIGHT
- 5.5kg (Approx.)
